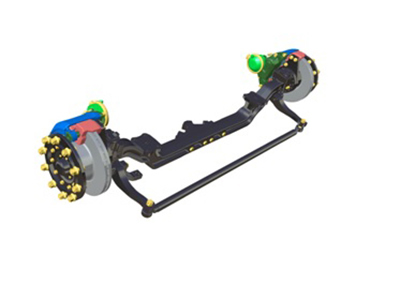

Medium, Heavy Duty Axle, 7.5T Series

Structural Features
1. The 7.5T Series axle from SG comes with a low integrally forged I-beam design, thus effectively reducing the floor height of bus.
2. It adopts air disc brake that ensures large and stable braking force.
3. The beam axle features large bearing capacity and long service life.

Applicable Vehicle

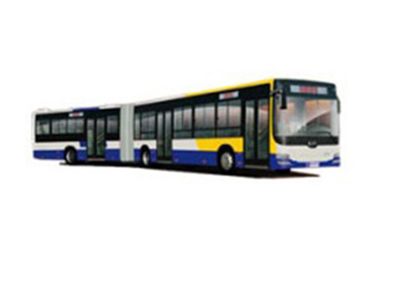

Over 12m or 18m transit bus

Main Technical Parameters
Rated load 7500
Master pin center distance 1813mm
Front axle shaft fall 75+130mm
Max. turning angle Inward : 55°Outward : 41°
Wheel span 2502mm
