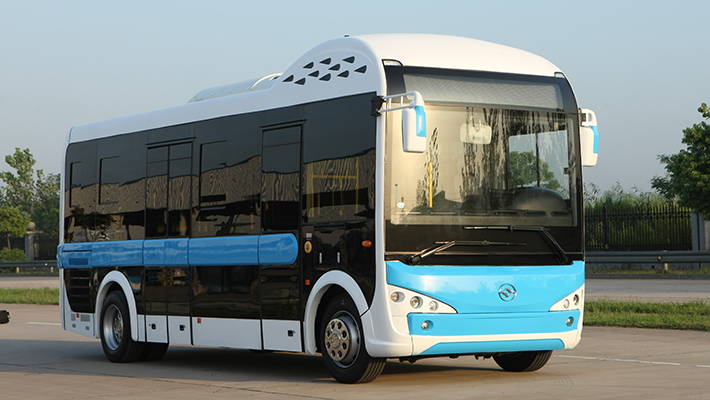

This is our 8m electric bus which comes with a length of 8m and is fully powered by electricity. It is a green bus, delivering completely new possibilities and unprecedented advantages for any city's public transportation systems. Powered by new and clean energy, the passenger carrying vehicle will lead our city to a green future.
1. Integral Body Construction: The electric bus comes with the up to date closed loop type fully integral body construction. Compared with common passenger bus, it features higher strength, lighter weight and higher safety factor, providing larger carrying capacity and lower energy consumption.
2. Low Carbon: This pure electric bus ensures zero emission. Equipped with Siemens motor and drive control system, it is energy efficient.
3. Intelligence: It comes equipped with a series of intelligent devices including CAN bus system, 3G/GPS vehicle mounted navigation system, LED display, etc. Therefore, it can realize real-time monitoring, real time navigation, remote fault diagnosis, dispatching management, and more functions.
4. Stylish Looks: The electric bus boasts modern and stylish appearance that is aesthetically pleasing.

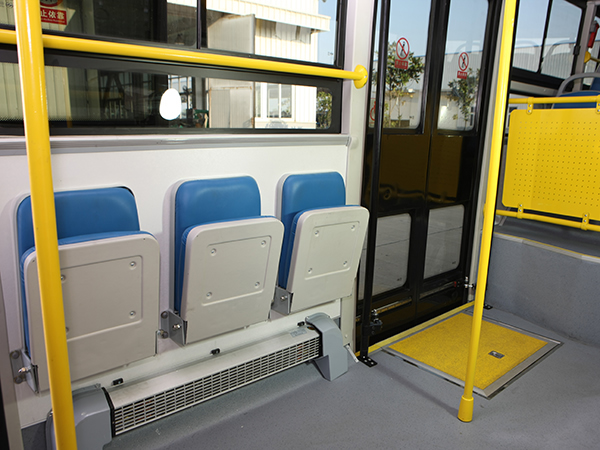

5. Large Capacity: Standard number of seats is 13-32. Seats in the front and right part are laterally arranged and can be folded, ensuring more space for standing in rush hours. Rated passenger capacity of the 32 seater bus is up to 60 that are same with the capacity of 10m bus.
|Drive motor||Model||1PV5138-4WS24 ( Siemens )|
|Type||3-Phase AC motor|
|Rated power (kW)||85|
|Chassis||Gearbox||Motor with reducer (Siemens, 4.5 gear ratio)|
|Suspension system||Air spring|
|Steering system||Electric hydraulic steering system, integral power steering gear made in China|
|Service brake||Pneumatic, dual circuit front and rear disc brakes|
|Parking brake||Energy storage spring, air brake|
|Minimum ground clearance||160|
|Main body configuration||Door||Front single-leaf and rear double-leaf sliding doors|
|Windows||Sliding windows with aluminum frames (integral bonding window is optional)|
|Service facilities||Optional: Electronic guideboard, get-off/reverse monitor, curtain, wheel cover, coin box, bus stop annunciator, etc.|
|Weight ( kg )||Maximum total mass||12500|
|Energy storage system||Lithium iron phosphate battery ( 538V 280AH )|
|Charging port||Chinese standard DC charging socket|
|Air conditioning||Electric ceiling mounted air conditioning (16000kcal/h)|
|Max. speed (km/h)||≥70|
