Box Semi-trailer

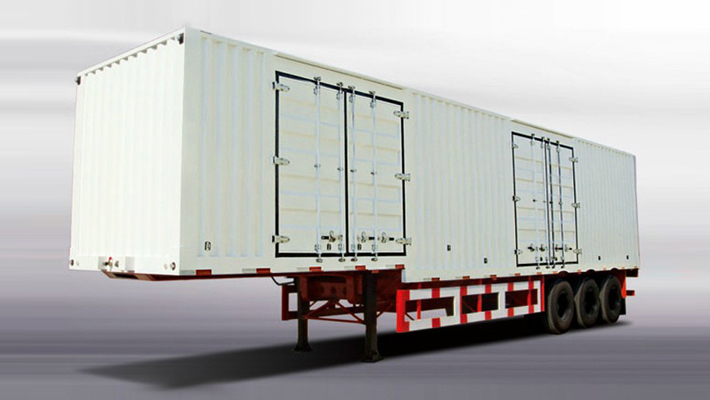

The box semi-trailer is primarily applied for transporting the home appliances, textile goods, construction materials like coal and sandstone, as well as other kinds of cargo. The box of the vehicle is fabricated from high-strength cold rolled corrugated steel sheet. With no skeleton structure, it has large space for cargo. The interior is rationally distributed with X tensile brace. The box is featured by large capacity, strong bearing capacity and light self weight.
Box Semi-trailer
Box Semi-trailer

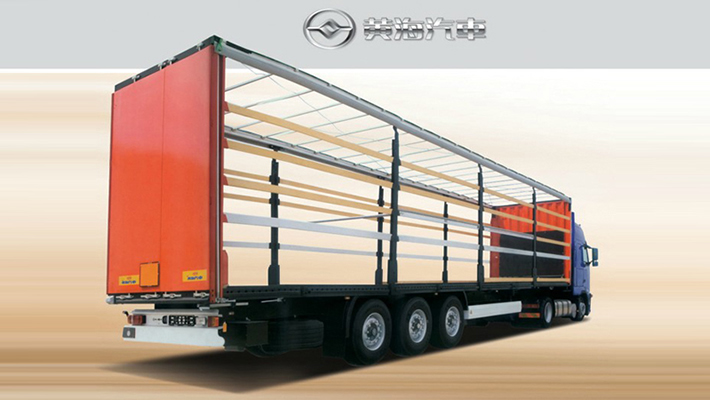

The box top of the box semi-trailer has the sealing type, sliding open type, open type, open with tarpaulin and rod type, etc. The operation for opening the top of the box is easy. The multiple types of the box can meet the diversified and personalized needs of the customers.

The box semi-trailer uses the enclosed side guard rail design to effectively cut down the vehicle lateral risk in the case of traveling with high speed and reduce the energy consumption. The rear protection for the vehicle is designed with reasonable cart attachment for facilitating the operation.

Technical Specification
Main Technical Parameters Model DD9400XXY
Overall Dimension (L×W×H) (mm) 13000×2550×3971
Box Inside Dimension (L×W×H) (mm) 12690×2450×2560
Max. Total Mass (kg) 40000
Curb Mass (kg) 8500
Rated Loading Capacity (kg) 31500
Number of Axles Three
Wheelbase (mm) 7660+1305+1305
Rear Overhang (mm) 1700
Departure Angle (°) 18
Main Assembly Mechanism and Parameters Rear Axle Form Built-in Brake Drum Axle
Service Brake Air Pressure Dual Circuit Drum Brake
Leaves Number of Leaf Spring (Front / Middle / Rear) 8/8/8
Tyre 11.00R20, 12.00R20
