At SG Axle and Components, we offer a wide series of light duty independent suspensions which are suitable for the axle suspension system of various types of vehicles such as pickup truck, SUV, MPV, light bus, passenger car, etc.

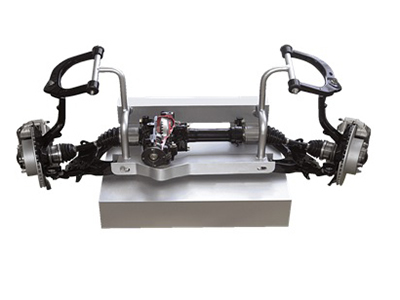

1.1020 Series Light Duty Suspension

Inquiry Form

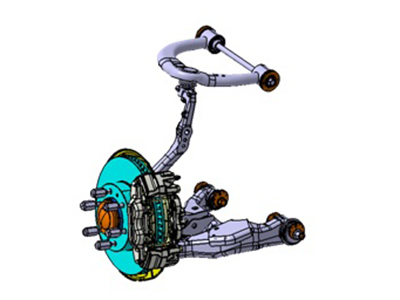

Structural features: Independent suspension front axle, double wishbone with unequal length, torsion bar spring

Applicable vehicle: Pickup

Main Technical Parameters
Rated load (kg)	900
Brake disc size (mm)	Ø256*25
Brake cylinder diameter (mm)	Ø66.7
Wheel span (mm)	1410

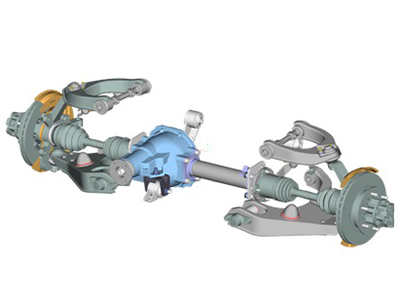

2. LEOPAARD Series Light Duty Suspension

Inquiry Form

Structural features: Independent suspension front axle, V-shape double wishbone structure, torsion bar spring

Applicable vehicle: Pickup/SUV

Main Technical Parameters
Rated load (kg)	1100
Brake disc size (mm)	Ø276*24
Brake cylinder diameter (mm)	Ø60
Wheel span (mm)	1466

3. LUBA Series Light Duty Suspension

Inquiry Form

Structural features: Independent suspension front axle, V-shape double wishbone structure, spiral spring

Applicable vehicle: Off-road SUV

Main Technical Parameters
Rated load (kg)	1185
Brake disc size (mm)	Ø319*22
Brake cylinder diameter (mm)	4-Ø45.3
Wheel span (mm)	1500

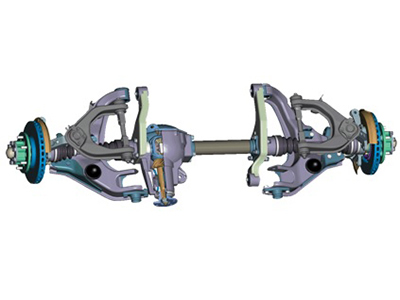

4. TERRACAN Series Light Duty Suspension

Inquiry Form

Structural features: Independent suspension with V-shape double wishbone structure, torsion bar spring

Applicable vehicle: SUV

Main Technical Parameters
Rated load (kg)	1100
Brake disc size (mm)	Ø279*27
Brake cylinder diameter (mm)	2-Ø45.4
Wheel span (mm)	1530

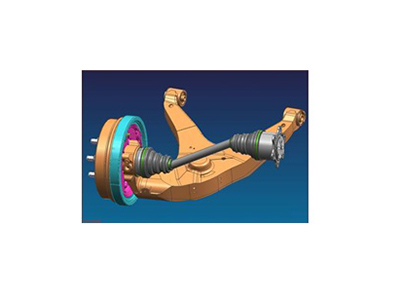

5. Foton MP-X Series Light Duty Suspension

Inquiry Form

Structural features
1) Independent front suspension with V-shape double wishbone structure, torsion bar spring;
2) Independent rear suspension with trailing arms, spiral spring

Applicable vehicle：MPV

Main Technical Parameters
Rated load (kg)	Front 1560/Rear 1600
Front brake disc size (mm)	Ø285*28
Rear brake drum size (mm)	Ø270*55
Brake cylinder diameter (mm)	Front Ø66.7/ Rear Ø23.81
Wheel span (mm)	Front 1540/ Rear 1540

6. RUITU Series Light Duty Suspension

Inquiry Form

Structural features: Macpherson independent suspension

Applicable vehicle: Light bus

Main Technical Parameters
Rated load (kg)	1685
Brake disc size (mm)	Ø300*28
Brake cylinder diameter (mm)	2-Ø48
Wheel span (mm)	1716

7. P201 Series Light Duty Suspension

Inquiry Form

Structural features: Independent suspension with V-shape double wishbone structure, spiral spring

Applicable vehicle: Pickup

Main Technical Parameters
Rated load (kg)	1150
Brake disc size (mm)	Ø28126/Ø31928
Brake cylinder diameter (mm)	2-Ø43, 4-Ø45.4
Wheel span (mm)	1560

8. M1 Series Light Duty Suspension

Inquiry Form

Structural features: Independent suspension with V-shape double wishbone structure

Applicable vehicle: B-class passenger car

9. A1 Series Light Duty Suspension

Inquiry Form

Structural features: Macpherson independent suspension

Applicable vehicle: A-class passenger car

10. A4 Series Light Duty Suspension

Inquiry Form

Structural features: Macpherson independent suspension

Applicable vehicle: A-class passenger car

11. H2 Series Light Duty Suspension

Inquiry Form

Structural features: Double wishbone type independent suspension

Applicable vehicle: Mini-van

12. B21 Series Light Duty Suspension

Inquiry Form

13. B14 Series Light Duty Suspension

Inquiry Form

Structural features: Semi-independent suspension with torsion beam

Applicable vehicle: MPV

14. BMPV Series Light Duty Suspension

Inquiry Form

Structural features: Macpherson independent suspension

Applicable vehicle: MPV

15. AF Series Light Duty Suspension

Inquiry Form

Structural features: Macpherson independent suspension

Applicable vehicle: A-class passenger car

16. A28 Series Light Duty Suspension

Inquiry Form

Structural features: Macpherson independent suspension

Applicable vehicle: SUV

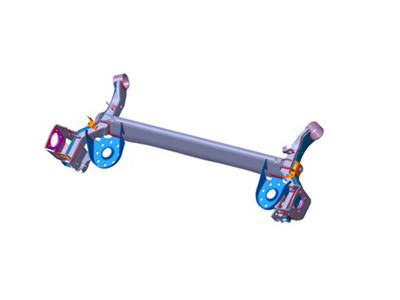

17. Foton MIDI Series Light Duty Suspension

Inquiry Form

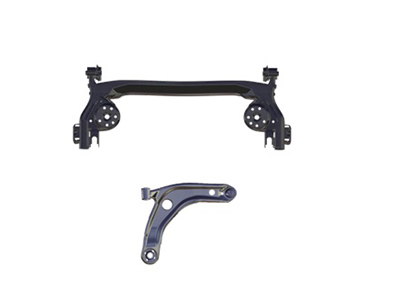

Structural features: Independent suspension with trailing arm and torsion beam

Applicable vehicle: SUV

18. Other Series Light Duty Suspensions

GAC AL Automobile
GAC A51 Automobile
GEELY CE-3
Brilliance F20

Inquiry Form
